33501F-05 High Power DC Electronic Load 120V , 240A , 2400W



Description



l   33500F Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIBRS232USB and LAN interface.

l   SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

l   Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

l   Single key for OCP OPP test function will be more efficiency and accuracy on OCPOPP testing.

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display +  or is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l   150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.



Features



l   5 digit V/A/W Meter.

l   High-speed measurement and communication transmission.

l   Large LCD Displaysetting values can be adjusted by rotary knob or push button.

l   VoltageCurrent and Watt value can be displayed simultaneously.

l   OCPOPP test function automatically.

l   Power ON status can be set.

l   CC, CR, CV, CP, Dynamic and Short operation mode.

l   SHORT time setting.

l   Protections against V,I,W, and °C.

l   Voltage meter display the polarity positive+”)or negative-”)is selectable.

l   Optional Interface : GPIBRS232USBLAN.

l   New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads.

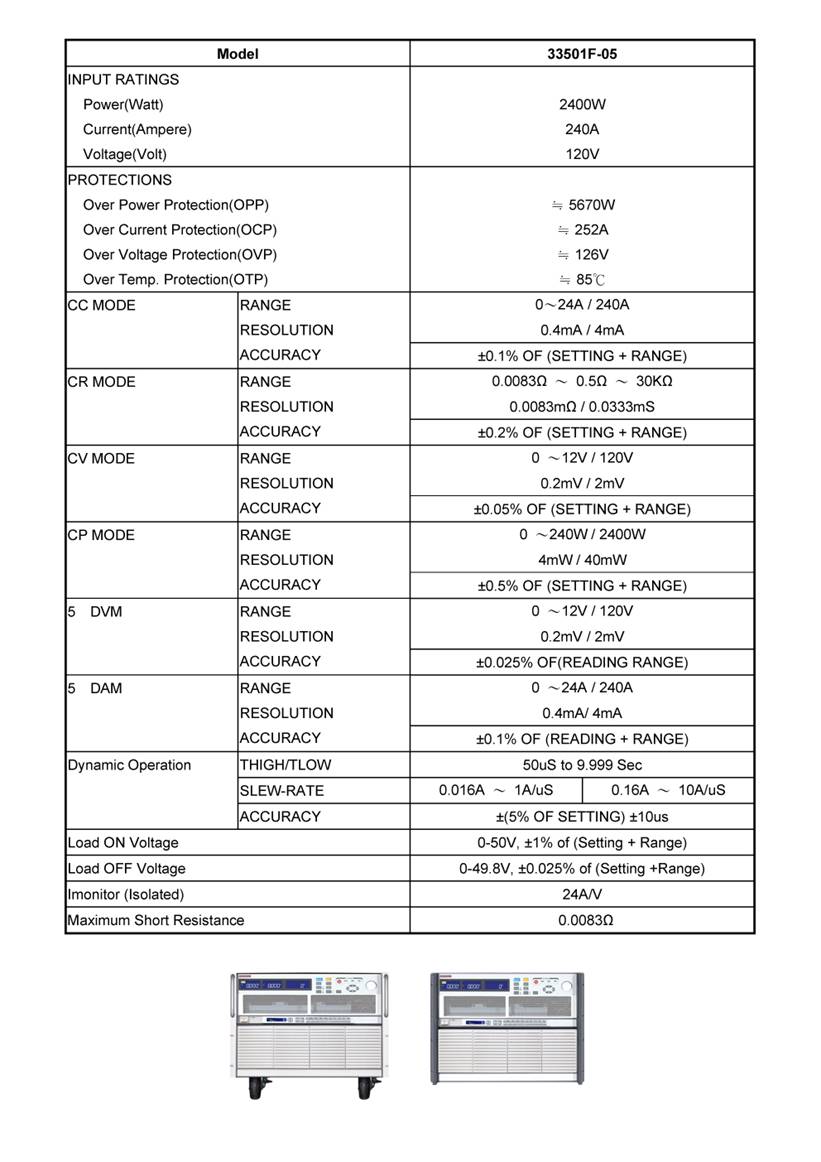

Specifications
